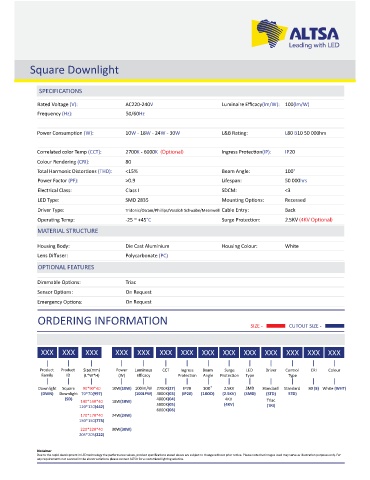

Square Downlight

SPECIFICATIONS

Rated Voltage (V): AC220-240V Luminaire Efficacy(lm/W): 100(lm/W)
Frequency (Hz): 50/60Hz

Power Consump on (W): 10W - 18W - 24W - 30W L&B Ra ng: L80 B10 50 000hrs

Correlated color Temp (CCT): 2700K - 6000K Ingress Protec on(IP): IP20
Colour Rendering (CRI): 80
Total Harmonic Distor ons (THD): <15% Beam Angle: 100°
Power Factor (PF): >0.9 Lifespan: 50 000hrs
Electrical Class: Class I SDCM: <3
LED Type: SMD 2835 Moun ng Op ons: Recessed

Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell Cable Entry: Back
Opera ng Temp: -25 ~ +45°C Surge Protec on:
MATERIAL STRUCTURE

Housing Body: Die Cast Aluminium Housing Colour: White
Lens Diffuser: Polycarbonate (PC)
OPTIONAL FEATURES

Dimmable Op ons: Triac
Sensor Op ons: On Request
Emergency Op ons: On Request
ORDERING INFORMATION
SIZE - CUTOUT SIZE -

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge LED Driver Control CRI Colour
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Type Type

Downlight Square 90*90*40 10W(10W) 100lm/W 2700K(27) IP20 100° 2.5KV SMD Standard Standard 80 (8) White (WHT)
(DWN) Downlight 70*70(997) (100LPW) 3000K(03) (IP20) (100D) (2.5KV) (SMD) (STD) STD)
(SD) 4000K(04) 4KV Triac
140*140*40 18W(18W)
120*120(442) 5000K(05) (4KV) (TRI)
6000K(06)
170*170*40 24W(24W)
150*150(775)
220*220*40 30W(30W)
205*205(222)

Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
