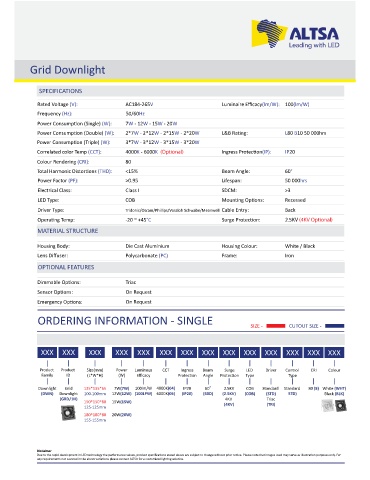

Page 78 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Grid Downlight

SPECIFICATIONS

Rated Voltage (V): AC184-265V Luminaire Efficacy(lm/W): 100(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (Single) (W): 7W - 12W - 15W - 20W
Power Consump on (Double) (W): 2*7W - 2*12W - 2*15W - 2*20W L&B Ra ng: L80 B10 50 000hrs
Power Consump on (Triple) (W): 3*7W - 3*12W - 3*15W - 3*20W
Correlated color Temp (CCT): 4000K - 6000K Ingress Protec on(IP): IP20
Colour Rendering (CRI): 80
Total Harmonic Distor ons (THD): <15% Beam Angle: 60°
Power Factor (PF): >0.95 Lifespan: 50 000hrs
Electrical Class: Class I SDCM: >3
LED Type: COB Moun ng Op ons: Recessed

Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell Cable Entry: Back
Opera ng Temp: -20 ~ +45°C Surge Protec on:
MATERIAL STRUCTURE

Housing Body: Die Cast Aluminium Housing Colour: White / Black
Lens Diffuser: Polycarbonate (PC) Frame: Iron
OPTIONAL FEATURES

Dimmable Op ons: Triac
Sensor Op ons: On Request
Emergency Op ons: On Request
ORDERING INFORMATION - SINGLE
SIZE - CUTOUT SIZE -

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge LED Driver Control CRI Colour
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Type Type

Downlight Grid 135*135*65 7W(7W) 100lm/W 4000K(04) IP20 60° 2.5KV COB Standard Standard 80 (8) White (WHT)
(DWN) Downlight 100-100mm 12W(12W) (100LPW) 6000K(06) (IP20) (60D) (2.5KV) (COB) (STD) STD) Black (BLK)
(GRD/1H) 4KV Triac
150*150*80 15W(15W) (4KV)
125-125mm (TRI)
180*180*80 20W(20W)
155-155mm

Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
