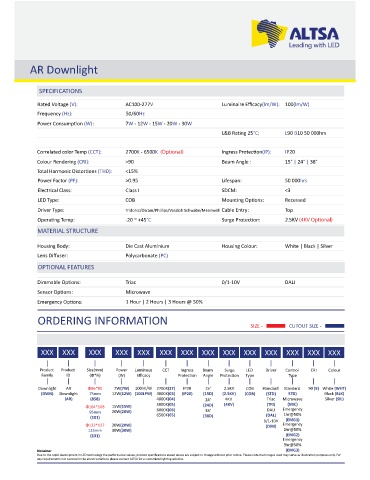

AR Downlight

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 100(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 7W - 12W - 15W - 20W - 30W
L&B Ra ng 25°C: L90 B10 50 000hrs

Correlated color Temp (CCT): 2700K - 6500K Ingress Protec on(IP): IP20
Colour Rendering (CRI): >90 Beam Angle : 15° | 24° | 38°
Total Harmonic Distor ons (THD): <15%
Power Factor (PF): >0.95 Lifespan: 50 000hrs
Electrical Class: Class I SDCM: <3
LED Type: COB Moun ng Op ons: Recessed

Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell Cable Entry: Top
Opera ng Temp: -20 ~ +45°C Surge Protec on:
MATERIAL STRUCTURE

Housing Body: Die Cast Aluminium Housing Colour: White | Black | Silver
Lens Diffuser: Polycarbonate (PC)
OPTIONAL FEATURES

Dimmable Op ons: Triac 0/1-10V DALI
Sensor Op ons: Microwave
Emergency Op ons: 1 Hour | 2 Hours | 3 Hours @ 50%
ORDERING INFORMATION
SIZE - CUTOUT SIZE -

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge LED Driver Control CRI Colour
Family ID (Φ*H) (W) Efficacy Protec on Angle Protec on Type Type

Downlight AR Φ86*80 7W(7W) 100lm/W 2700K(27) IP20 15° 2.5KV COB Standard Standard 90 (9) White (WHT)
(DWN) Downlight 75mm 12W(12W) (100LPW) 3000K(03) (IP20) (15D) (2.5KV) (COB) (STD) STD) Black (BLK)
(AR) (858) 4000K(04) 24° 4KV Triac Microwave Silver (SIL)
(MIC)
Φ104*108 15W(15W) 5000K(05) (24D) (4KV) (TRI) Emergency
95mm 20W(20W) 6000K(06) 38° DALI 1hr@50%
(101) 6500K(65) (38D) (DAL)
0/1-10V (EMG1)
Φ132*127 20W(20W) (DIM) Emergency
125mm 30W(30W) 2hr@50%
(131) (EMG2)
Emergency
3hr@50%
Disclaimer (EMG3)
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
