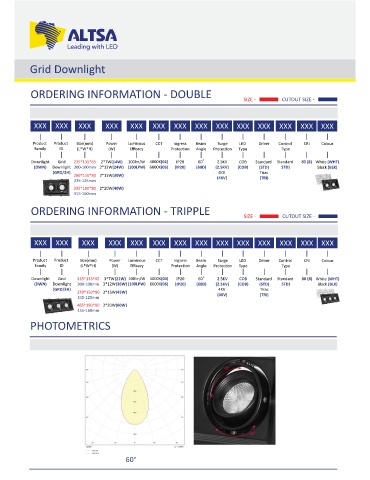

Page 79 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Grid Downlight

ORDERING INFORMATION - DOUBLE
SIZE - CUTOUT SIZE -

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge LED Driver Control CRI Colour
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Type Type

Downlight Grid 235*135*65 2*7W(14W) 100lm/W 4000K(04) IP20 60° 2.5KV COB Standard Standard 80 (8) White (WHT)
(DWN) Downlight 200-100mm 2*12W(24W) (100LPW) 6000K(06) (IP20) (60D) (2.5KV) (COB) (STD) STD) Black (BLK)
(GRD/2H) 4KV Triac
260*150*80 2*15W(30W) (4KV) (TRI)
235-125mm
335*180*80 2*20W(40W)
315-160mm

ORDERING INFORMATION - TRIPPLE
SIZE - CUTOUT SIZE -

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge LED Driver Control CRI Colour
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Type Type

Downlight Grid 335*135*65 3*7W(21W) 100lm/W 4000K(04) IP20 60° 2.5KV COB Standard Standard 80 (8) White (WHT)
(DWN) Downlight 300-100mm 3*12W(36W) (100LPW) 6000K(06) (IP20) (60D) (2.5KV) (COB) (STD) STD) Black (BLK)
(GRD/3H) 4KV Triac
370*150*80 3*15W(45W)
345-125mm (4KV) (TRI)
485*180*80 3*20W(60W)
455-160mm
PHOTOMETRICS

60°
